ROBINSON RACING PRODUCTS
All of our products are precision manufactured in the U.S.A. and have been proven on the track, off-road, and in countless back-yards so you can depend on them when it counts for maximum performance and fun. We back up our confidence with more than 30 years of experience in manufacturing and racing hi-performance RC products.

[CLICK IMAGES TO ENLARGE]

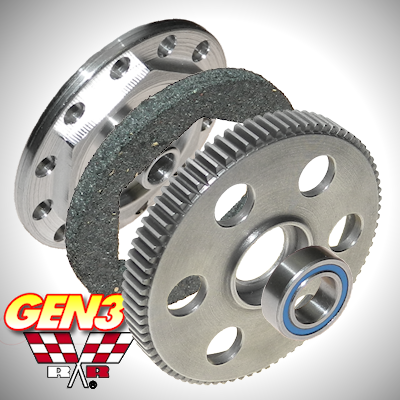

Axial Wraith GEN3 Slipper Unit - 80 Tooth 48 Pitch Steel Spur/Slipper Pad/Backplate/Bearing

Axial Wraith GEN3 Slipper Unit TOP

HARDENED STEEL SPUR GEAR
Precision machined, hardened steel spur gear.
SOLID BILLET ALUMINUM BACKPLATE
The backplate is 100% machined from aircraft grade solid billet aluminum making it very strong and very hard. It will not warp or break. The backplate uses a captured design to hold the extra thick slipper pad solidly in place.
READY FOR HI-PERFORMANCE FUN??
A new bearing, instructions, and some RRP decals are also included in the kit. Hop-up your AXIAL WRAITH and unleash the power and the FUN!!!
Part # Description Pitch Teeth Price
1545 Axial Wraith GEN3 Slipper Unit - Hardened Steel Spur/Slipper Pad/Backplate/Bearing 48P 80T $46.50
[CLICK/TAP IMAGES TO ENLARGE]

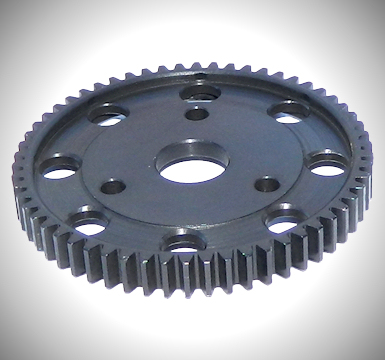

AXIAL WRAITH / AX10 BLACKENED STEEL SPUR GEAR 58T 32P



AXIAL WRAITH / AX10 BLACKENED STEEL SPUR GEAR TOP

BLACKENED HARDENED STEEL SPUR GEAR
Precision machined, hardened steel spur, with a blackened finish that improves lubricity (the capacity to reduce friction) and anti-galling (metal cracking/breaking from friction) characteristics resulting in better mating surfaces and smoother running gears.

TECH NOTE: This is a heavy duty 32 pitch replacement for the stock 48 pitch spur gear. You will need a 32 pitch pinion also. Robinson Racing recommends our Extra Hard High Carbon Steel Blackened Finish Motor Pinions, see below for sizes and pricing.

Part # Description Pitch Teeth Price
1558 AXIAL WRAITH / AX10 BLACKENED STEEL SPUR GEAR 32P 58T $22.75
Extra Hard High Carbon Steel Motor Pinion 5mm bore / 32 pitch

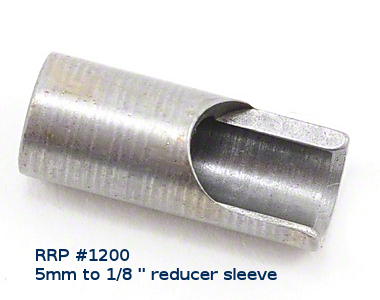

RRP#1200 5 m/m to 1/8 inch Reducer Sleeve
[CLICK IMAGES TO ENLARGE]
Extra Hard High Carbon Steel Motor Pinion 5mm bore / 32 pitch TOP

PREMIUM EXTRA HARD HIGH CARBON STEEL
Extra hard high carbon motor pinions are built to last with our hi-performance GEN3 steel slipper units. Made from high carbon steel and then heat treated to increase the hardness of the surface even more. High carbon steel is naturally higher in lubricity and lower in adhesion than milder grades of steel making these gears ideal for use with metal spur gears. All pinions precision machined and stamped with the number of teeth. One 4 m/m set screw included. 2 m/m allen wrench (NOT INCLUDED) fits the 4 m/m set screw. Can be run on motors using a 5 m/m motor shaft including Traxxas, Associated, and HPI models or for any heavy duty application.

TECH NOTE: RRP#1200 5 m/m to 1/8 inch Reducer Sleeve required for 1/8 inch shaft motors.

TECH NOTE: 32 pitch and .8 module gears can be used together with no adverse affects such as increased noise or increased wear. The difference is that .8 module gears have a slightly larger outside diameter per tooth, roughly .00027 of an inch.

Part # Description Bore/Pitch Teeth Price
8611 Extra Hard High Carbon Steel Motor Pinion 5mm/32 pitch 11 $12.50
8612 Extra Hard High Carbon Steel Motor Pinion 5mm/32 pitch 12 $12.50
8613 Extra Hard High Carbon Steel Motor Pinion 5mm/32 pitch 13 $12.50
8614 Extra Hard High Carbon Steel Motor Pinion 5mm/32 pitch 14 $12.50
8615 Extra Hard High Carbon Steel Motor Pinion 5mm/32 pitch 15 $12.50
8616 Extra Hard High Carbon Steel Motor Pinion 5mm/32 pitch 16 $12.50
8617 Extra Hard High Carbon Steel Motor Pinion 5mm/32 pitch 17 $12.50
8618 Extra Hard High Carbon Steel Motor Pinion 5mm/32 pitch 18 $12.50
8619 Extra Hard High Carbon Steel Motor Pinion 5mm/32 pitch 19 $12.50
8620 Extra Hard High Carbon Steel Motor Pinion 5mm/32 pitch 20 $12.50
8621 Extra Hard High Carbon Steel Motor Pinion 5mm/32 pitch 21 $12.50
8622 Extra Hard High Carbon Steel Motor Pinion 5mm/32 pitch 22 $12.50
8623 Extra Hard High Carbon Steel Motor Pinion 5mm/32 pitch 23 $12.50
8624 Extra Hard High Carbon Steel Motor Pinion 5mm/32 pitch 24 $12.50
8625 Extra Hard High Carbon Steel Motor Pinion 5mm/32 pitch 25 $12.50
8626 Extra Hard High Carbon Steel Motor Pinion 5mm/32 pitch 26 $12.50
1200 5m/m to 1/8 inch Reducer Sleeve.     $3.95
1201 4x4 m/m set screws for 5 m/m pinions. (5pcs)     $2.50
[CLICK/TAP IMAGES TO ENLARGE]

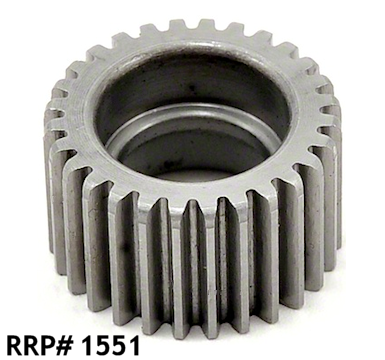

AXIAL WRAITH HARDENED STEEL IDLER GEAR



AXIAL WRAITH HARDENED STEEL IDLER GEAR TOP

Precision machined, hardened steel idler gear for the Axial Wraith.

Part # Description Pitch Teeth Price
1551 AXIAL WRAITH HARDENED STEEL IDLER GEAR n/a n/a $14.95
[CLICK/TAP IMAGES TO ENLARGE]

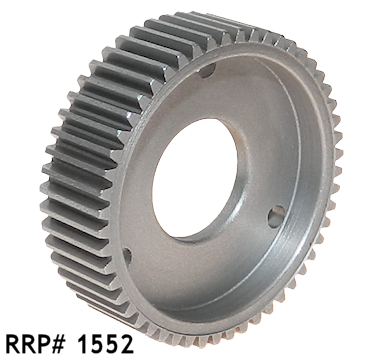

AXIAL WRAITH HARDENED STEEL BOTTOM DIFF GEAR



AXIAL WRAITH HARDENED STEEL BOTTOM DIFF GEAR TOP

Precision machined, hardened steel, bottom diff gear for the Axial Wraith.

Part # Description Pitch Teeth Price
1552 AXIAL WRAITH HARDENED STEEL BOTTOM DIFF GEAR n/a n/a $19.95
[CLICK/TAP IMAGES TO ENLARGE]

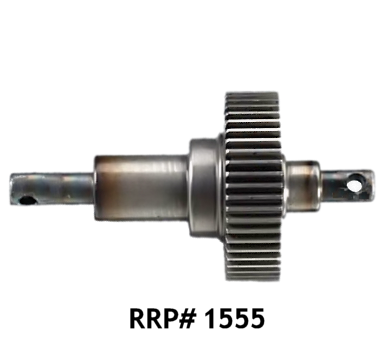

AXIAL WRAITH ONE-PIECE HARDENED STEEL OUTDRIVE/DIFF GEAR



AXIAL WRAITH ONE-PIECE HARDENED STEEL OUTDRIVE/DIFF GEAR TOP

Precision machined, hardened steel, one-piece outdrive/diff gear for the Axial Wraith.

Part # Description Pitch Teeth Price
1555 AXIAL WRAITH ONE-PIECE HARDENED STEEL OUTDRIVE/DIFF GEAR n/a n/a $33.95
[CLICK/TAP IMAGES TO ENLARGE]

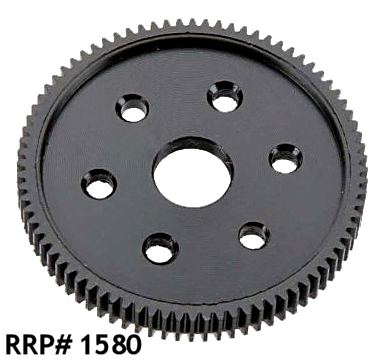

AXIAL WRAITH 'SuperTuff' PLASTIC SPUR GEAR 80 TOOTH 48 PITCH



AXIAL WRAITH "SuperTuff" PLASTIC SPUR GEAR TOP

Precision machined, "SuperTuff" black plastic spur gear for the Axial Wraith.

Part # Description Pitch Teeth Price
1580 AXIAL WRAITH "SuperTuff" PLASTIC SPUR GEAR 80 TOOTH 48 PITCH 48P 80 $7.95
