ROBINSON RACING PRODUCTS

RRP HI-PERFORMANCE PARTS
AXIAL AX10 SCORPION
Click / tap on a link to jump to that item.

ROBINSON RACING PRODUCTS
All of our products are precision manufactured in the U.S.A. and have been proven on the track, off-road, and in countless back-yards so you can depend on them when it counts for maximum performance and fun. We back up our confidence with more than 30 years of experience in manufacturing and racing hi-performance RC products.

[CLICK IMAGES TO ENLARGE]

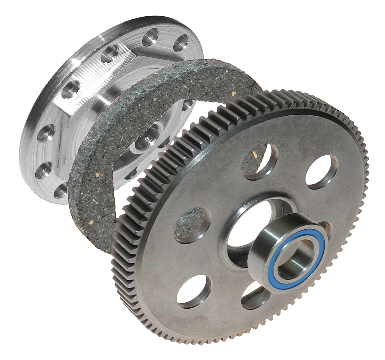

AXIAL AX10 SCORPION GEN3 Slipper Unit - 88 Tooth 48 Pitch Steel Spur/Slipper Pad/Backplate/Bearing

AXIAL AX10 SCORPION GEN3 Slipper Unit TOP

HARDENED STEEL SPUR GEAR
Precision machined, hardened steel spur gear.
SOLID BILLET ALUMINUM BACKPLATE
The backplate is 100% machined from aircraft grade solid billet aluminum making it very strong and very hard. It will not warp or break. The backplate uses a captured design to hold the extra thick slipper pad solidly in place.
READY FOR HI-PERFORMANCE FUN??
A new bearing, instructions, and some RRP decals are also included in the kit. Hop-up your AXIAL AX10 SCORPION and unleash the power and the FUN!!!
Part # Description Pitch Teeth Price
1550 AXIAL AX10 SCORPION GEN3 Slipper Unit - Hardened Steel Spur/Slipper Pad/Backplate/Bearing 48P 88T $46.50
[CLICK/TAP IMAGES TO ENLARGE]
AXIAL WRAITH / AX10 BLACKENED STEEL SPUR GEAR 58T 32P



AXIAL WRAITH / AX10 BLACKENED STEEL SPUR GEAR TOP

BLACKENED HARDENED STEEL SPUR GEAR
Precision machined, hardened steel spur, with a blackened finish that improves lubricity (the capacity to reduce friction) and anti-galling (metal cracking/breaking from friction) characteristics resulting in better mating surfaces and smoother running gears.

TECH NOTE: This is a heavy duty 32 pitch replacement for the stock 48 pitch spur gear. You will need a 32 pitch pinion also. Robinson Racing recommends our Extra Hard High Carbon Steel Motor Pinions. See below for sizes and pricing.

Part # Description Pitch Teeth Price
1558 AXIAL WRAITH / AX10 BLACKENED STEEL SPUR GEAR 32P 58T $22.75
[CLICK IMAGES TO ENLARGE]
Extra Hard High Carbon Steel Motor Pinion 5mm bore / 32 pitch

RRP#1200 5 m/m to 1/8 inch Reducer Sleeve
Extra Hard High Carbon Steel Motor Pinions 5mm bore / 32 pitch TOP

PREMIUM EXTRA HARD HIGH CARBON STEEL MOTOR PINIONS
Extra hard high carbon motor pinions are built to last with our hi-performance GEN3 steel slipper units. Made from high carbon steel and then heat treated to increase the hardness of the surface even more. High carbon steel is naturally higher in lubricity and lower in adhesion than milder grades of steel making these gears ideal for use with metal spur gears. All pinions precision machined and stamped with the number of teeth. One 4 m/m set screw included. 2 m/m allen wrench (NOT INCLUDED) fits the 4 m/m set screw. Can be run on motors using a 5 m/m motor shaft including Traxxas, Associated, and HPI models or for any heavy duty application.

TECH NOTE: RRP#1200 5 m/m to 1/8 inch Reducer Sleeve required for 1/8 inch shaft motors.

TECH NOTE: 32 pitch and .8 module gears can be used together with no adverse affects such as increased noise or increased wear. The difference is that .8 module gears have a slightly larger outside diameter per tooth, roughly .00027 of an inch.

Part # Description Bore/Pitch Teeth Price
8611 Extra Hard High Carbon Steel Motor Pinion 5mm/32P 11 $12.50
8612 Extra Hard High Carbon Steel Motor Pinion 5mm/32P 12 $12.50
8613 Extra Hard High Carbon Steel Motor Pinion 5mm/32P 13 $12.50
8614 Extra Hard High Carbon Steel Motor Pinion 5mm/32 pitch 14 $12.50
8615 Extra Hard High Carbon Steel Motor Pinion 5mm/32P 15 $12.50
8616 Extra Hard High Carbon Steel Motor Pinion 5mm/32P 16 $12.50
8617 Extra Hard High Carbon Steel Motor Pinion 5mm/32 pitch 17 $12.50
8618 Extra Hard High Carbon Steel Motor Pinion 5mm/32P 18 $12.50
8619 Extra Hard High Carbon Steel Motor Pinion 5mm/32 pitch 19 $12.50
8620 Extra Hard High Carbon Steel Motor Pinion 5mm/32P 20 $12.50
8621 Extra Hard High Carbon Steel Motor Pinion 5mm/32P 21 $12.50
8622 Extra Hard High Carbon Steel Motor Pinion 5mm/32P 22 $12.50
8623 Extra Hard High Carbon Steel Motor Pinion 5mm/32P 23 $12.50
8624 Extra Hard High Carbon Steel Motor Pinion 5mm/32P 24 $12.50
8625 Extra Hard High Carbon Steel Motor Pinion 5mm/32P 25 $12.50
8626 Extra Hard High Carbon Steel Motor Pinion 5mm/32P 26 $12.50
1200 5m/m to 1/8 inch Reducer Sleeve.     $3.95
1201 4x4 m/m set screws for 5 m/m pinions. (5pcs)     $2.50
[CLICK/TAP IMAGES TO ENLARGE]

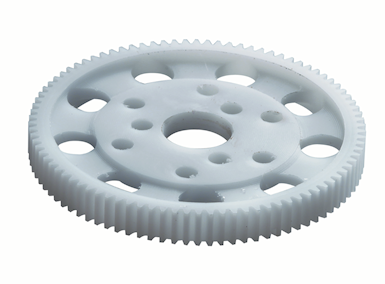

AXIAL AX10 SCORPION MACHINED NYLON SPUR GEAR



AXIAL AX10 SCORPION MACHINED NYLON SPUR GEAR TOP

Precision machined nylon spur gears for your AX10 Scorpion.

Part # Description Pitch Teeth Price
1587 AXIAL AX10 SCORPION MACHINED NYLON SPUR GEAR 48P 87 $7.95
1590 AXIAL AX10 SCORPION MACHINED NYLON SPUR GEAR 48P 90 $7.95
1593 AXIAL AX10 SCORPION MACHINED NYLON SPUR GEAR 48P 93 $7.95
[CLICK/TAP IMAGES TO ENLARGE]

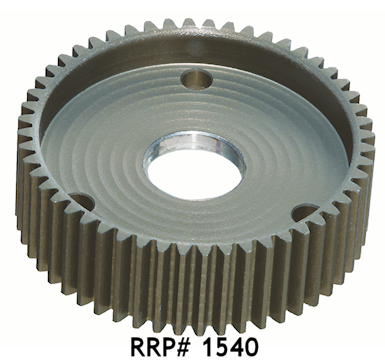

AX10 Scorpion Hardened Aluminum Machined Locker Diff. Gear



AXIAL AX10 Scorpion Hardened Aluminum Machined Locker Diff. Gear TOP

Precision machined, Hardened Aluminum Locker Diff. Gear for the AXIAL AX10 Scorpion.

Part # Description Pitch Teeth Price
1540 AXIAL AX10 Scorpion Hardened Aluminum Machined Locker Diff. Gear n/a n/a $17.50
[CLICK/TAP IMAGES TO ENLARGE]

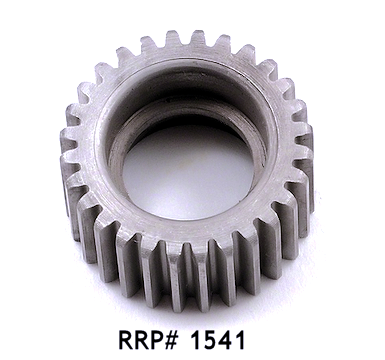

AXIAL AX10 Scorpion Hardened Steel Idler Gear



AXIAL AX10 Scorpion Hardened Steel Idler Gear TOP

Precision machined, hardened steel, idler gear for the AXIAL AX10 Scorpion.

Part # Description Pitch Teeth Price
1541 AXIAL AX10 Scorpion Hardened Steel Idler Gear n/a n/a $13.95
[CLICK/TAP IMAGES TO ENLARGE]

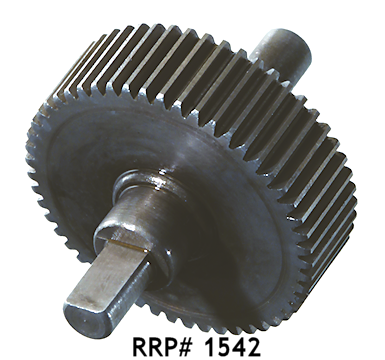

AXIAL AX10 SCORPION ONE-PIECE HARDENED STEEL OUTDRIVE/DIFF GEAR



AXIAL AX10 SCORPION ONE-PIECE HARDENED STEEL OUTDRIVE/DIFF GEAR TOP

Precision machined, hardened steel, one-piece outdrive/diff gear for the AXIAL AX10 SCORPION.

Part # Description Pitch Teeth Price
1542 AXIAL AX10 SCORPION ONE-PIECE HARDENED STEEL OUTDRIVE/DIFF GEAR n/a n/a $28.50
