ROBINSON RACING PRODUCTS


ROBINSON RACING PRODUCTS
Robinson Racing GEN3 Slipper Units are over-engineered to meet the punishing demands of the most powerfull brushless motor systems! GEN3 Slipper Units will not fail under the enormous load conditions of todays brushless motor systems. The new GEN3 Slipper Unit is a captured design to prevent slipper pad blowout and deliver maximum power to the ground. The hi-performance hardened steel spur gear will not fail or strip. Aircraft grade billet aluminum backplate will not bend or break. Increased surface area of the oversized pad insures dependable performance. Less total parts reduces flex and wobble in the spur gear and slipper unit.

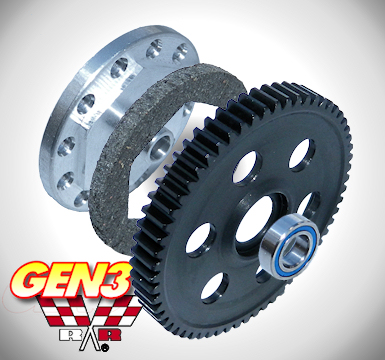

 Traxxas E-REVO Brushless GEN3 Slipper Unit - 0.8 module 65 Tooth Steel Spur Gear/Slipper Pad/Backplate/Bearing
[CLICK IMAGES TO ENLARGE]
Extra Heavy Duty GEN3 Slipper Units TOP

BLACKENED HARDENED STEEL SPUR GEAR
Precision machined, hardened steel spur, with a blackened finish that improves lubricity (the capacity to reduce friction) and anti-galling (metal cracking/breaking from friction) characteristics resulting in better mating surfaces and smoother running gears. With an extra heavy duty .8 module/32 pitch tooth profile, don't be afraid to pour on all the power you got. 3S LiPO's no problem!
SOLID BILLET ALUMINUM BACKPLATE
The backplate is 100% machined from airplane grade solid billet aluminum making it very strong and very hard. It will not warp or break. The backplate uses a captured design to hold the extra thick slipper pad solidly in place.
READY FOR HI-PERFORMANCE FUN??
Four cone washers, instructions and some RRP decals are also included in the kit. Hop-up your E-MAXX and unleash the power and the FUN!!!

TECH NOTE: You're going to need a pinion gear to match this spur gear. See the motor pinions listed below for a selection of extra hard high carbon steel 5M/M bore motor pinions we recommend to use with the GEN3 Slipper Units.
TECH NOTE: 32 pitch and .8 module gears can be used together with no adverse affects such as increased noise or increased wear. The difference is that .8 module gears have a slightly larger outside diameter per tooth, roughly .00027 of an inch.

Part # Description Pitch Teeth Price
7960 Traxxas E-Maxx/Brushless GEN3 Slipper Unit - Steel Spur Gear/Slipper Pad/Backplate/Bearing 0.8 module 60 $49.50
7965 Traxxas E-Maxx/Brushless GEN3 Slipper Unit - Steel Spur Gear/Slipper Pad/Backplate/Bearing 0.8 module 65 $49.50

Extra Hard High Carbon Steel Motor Pinion

RRP#1200 5 m/m to 1/8 inch Reducer Sleeve
[CLICK IMAGE TO ENLARGE]
Extra Hard High Carbon Steel Motor Pinion - 5mm Bore / .8 Module TOP

PREMIUM EXTRA HARD HIGH CARBON STEEL
Extra hard high carbon motor pinions are built to last with our hi-performance GEN3 steel slipper units. Made from high carbon steel and then heat treated to increase the hardness of the surface even further. High carbon steel is naturally lower in friction and adhesion than milder grades of steel making these gears ideal for use with metal spur gears. All pinions precision machined and stamped with the number of teeth. One 4 m/m set screw included. 2 m/m allen wrench (NOT INCLUDED) fits the 4 m/m set screw. Can be run on motors using a 5 m/m motor shaft including Traxxas, Associated, and HPI models or for any heavy duty application.

TECH NOTE: RRP#1200 5 m/m to 1/8 inch Reducer Sleeve required for 1/8 inch shaft motors.

TECH NOTE: 32 pitch and .8 module gears can be used together with no adverse affects such as increased noise or increased wear. The difference is that .8 module gears have a slightly larger outside diameter per tooth, roughly .00027 of an inch.

Part # Description Bore/Pitch Teeth Price
8711 Extra Hard High Carbon Steel Motor Pinion 5mm / .8 module 11 $12.50
8712 Extra Hard High Carbon Steel Motor Pinion 5mm / .8 module 12 $12.50
8713 Extra Hard High Carbon Steel Motor Pinion 5mm / .8 module 13 $12.50
8714 Extra Hard High Carbon Steel Motor Pinion 5mm / .8 module 14 $12.50
8715 Extra Hard High Carbon Steel Motor Pinion 5mm / .8 module 15 $12.50
8716 Extra Hard High Carbon Steel Motor Pinion 5mm / .8 module 16 $12.50
8717 Extra Hard High Carbon Steel Motor Pinion 5mm / .8 module 17 $12.50
8718 Extra Hard High Carbon Steel Motor Pinion 5mm / .8 module 18 $12.50
8719 Extra Hard High Carbon Steel Motor Pinion 5mm / .8 module 19 $12.50
8720 Extra Hard High Carbon Steel Motor Pinion 5mm / .8 module 20 $12.50
8721 Extra Hard High Carbon Steel Motor Pinion 5mm / .8 module 21 $12.50
8722 Extra Hard High Carbon Steel Motor Pinion 5mm / .8 module 22 $12.50
8723 Extra Hard High Carbon Steel Motor Pinion 5mm / .8 module 23 $12.50
8724 Extra Hard High Carbon Steel Motor Pinion 5mm / .8 module 24 $12.50
8725 Extra Hard High Carbon Steel Motor Pinion 5mm / .8 module 25 $12.50
1200 5m/m to 1/8 inch Reducer Sleeve.     $3.95
1201 4x4 m/m set screws for 5 m/m pinions (5pcs)     $2.50

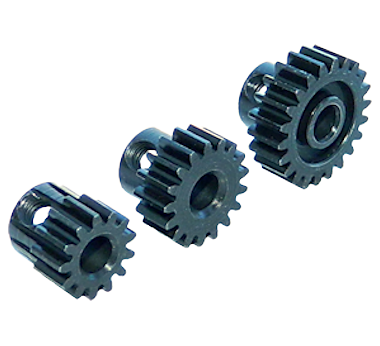

 Extra Hard High Carbon Steel Blackened Finish Motor Pinion 5mm bore / 32 pitch

RRP#1200 5 m/m to 1/8 inch Reducer Sleeve
[CLICK IMAGES TO ENLARGE]
Extra Hard High Carbon Steel Blackened Finish Motor Pinion 5mm bore / 32 pitch TOP

PREMIUM EXTRA HARD HIGH CARBON STEEL BLACKENED FINISH
Extra hard high carbon motor pinions are built to last with our hi-performance GEN3 steel slipper units. Made from high carbon steel and then heat treated to increase the hardness of the surface even more. High carbon steel is naturally higher in lubricity and lower in adhesion than milder grades of steel making these gears ideal for use with metal spur gears. The blackened finish further improves lubricity (the capacity to reduce friction) and anti-galling (metal cracking/breaking from friction) characteristics resulting in even better mating surfaces and smoother running gears. All pinions precision machined and stamped with the number of teeth. One 4 m/m set screw included. 2 m/m allen wrench (NOT INCLUDED) fits the 4 m/m set screw. Can be run on motors using a 5 m/m motor shaft including Traxxas, Associated, and HPI models or for any heavy duty application.

TECH NOTE: RRP#1200 5 m/m to 1/8 inch Reducer Sleeve required for 1/8 inch shaft motors.

TECH NOTE: 32 pitch and .8 module gears can be used together with no adverse affects such as increased noise or increased wear. The difference is that .8 module gears have a slightly larger outside diameter per tooth, roughly .00027 of an inch.

Part # Description Bore/Pitch Teeth Price
8611 Extra Hard High Carbon Steel Blackened Finish 5mm/32 pitch 11 $12.50
8612 Extra Hard High Carbon Steel Blackened Finish 5mm/32 pitch 12 $12.50
8613 Extra Hard High Carbon Steel Blackened Finish 5mm/32 pitch 13 $12.50
8614 Extra Hard High Carbon Steel Blackened Finish 5mm/32 pitch 14 $12.50
8615 Extra Hard High Carbon Steel Blackened Finish 5mm/32 pitch 15 $12.50
8616 Extra Hard High Carbon Steel Blackened Finish 5mm/32 pitch 16 $12.50
8617 Extra Hard High Carbon Steel Blackened Finish 5mm/32 pitch 17 $12.50
8618 Extra Hard High Carbon Steel Blackened Finish 5mm/32 pitch 18 $12.50
8619 Extra Hard High Carbon Steel Blackened Finish 5mm/32 pitch 19 $12.50
8620 Extra Hard High Carbon Steel Blackened Finish 5mm/32 pitch 20 $12.50
8621 Extra Hard High Carbon Steel Blackened Finish 5mm/32 pitch 21 $12.50
8622 Extra Hard High Carbon Steel Blackened Finish 5mm/32 pitch 22 $12.50
8623 Extra Hard High Carbon Steel Blackened Finish 5mm/32 pitch 23 $12.50
8624 Extra Hard High Carbon Steel Blackened Finish 5mm/32 pitch 24 $12.50
8625 Extra Hard High Carbon Steel Blackened Finish 5mm/32 pitch 25 $12.50
8626 Extra Hard High Carbon Steel Blackened Finish 5mm/32 pitch 26 $12.50
1200 5m/m to 1/8 inch Reducer Sleeve.     $3.95
1201 4x4 m/m set screws for 5 m/m pinions. (5pcs)     $2.50
